​MV AGUSTA Superveloce 75th Anniversary ฉลอง 75 ปี ผลิตขาย 75 คัน

MV Agusta Superveloce เวอร์ชั่นเฉลิมฉลองเจ็ดสิบห้าปี 75th Anniversary ที่จะผลิตจำกัดเพียง 75 คันเท่านั้น ด้วยเครื่องยนต์ Inline Three Cylinder Engine แบบเดียวกับ F3 800 ที่พัฒนาเพิ่มเติม จนสามารถทำความเร็วได้มากกว่า 240 กม./ชม. ด้วยขุมพลัง 153 แรงม้าที่ 13,250 รอบต่อนาที  จากพื้นฐานเครื่องยนต์ Dual Overhead Camshaft manages the 12 Titanium Intake and Exhaust Valves ที่มีมิติของกระบอกสูบ x ช่วงชัก 79×54.3 มม. ทำให้ได้ปริมาตรความจุเครื่องยนต์ 798 ซีซี พร้อมด้วยการปรับแต่งเพิ่มเติมรายละเอียดต่างๆจนทำให้ได้สมรรถนะที่สูงขึ้นจากพื้นฐานของ  F3 800ที่เดิมมีกำลัง 148 แรงม้า

นอกจากนี้ได้เสริมด้วยชิ้นส่วนพิเศษที่แตกต่างจากโมเดลมาตรฐาน  ซึ่งรายะอียดข้อมูลของตัวรถมีสเปคดังนี้
ENGINEType  : Three cylinder, 4 stroke, 12 valve D.O.H.C 798 cm3 (48.7 cu. in.)
Compression ratio : 13.3:1
Starting : Electric
Bore x stroke :  79 mm x 54.3 mm (3.1 in. x 2.1 in.)
Max. Power : 112.5 kW (153 hp) at 13.250 r.p.m.**
Max. Torque :  88 Nm (8.97 kgm) at 10.600 r.p.m.
Cooling system : Cooling with separated liquid and oil
radiators
injection system : MVICS(Motor & Vehicle Integrated Control System) with six injectors Engine control unit EldorEM2.0, throttle body full ride by wire
Clutch : Wet, multi-disc slipper clutch
Transmission :  Cassette style; six speed, constant mesh
Primary drive :  22/41
Voltage : 12 V
Alternato : r 350 W at 5000 r.p.m.
Battery  : 12 V – 8.6 Ah
Wheelbase :  1380 mm (54.33 in.)
Overall length :  2030 mm (79.92 in.)
Overall width :  730 mm (28.74 in.)
Saddle height :  830 mm (32.68 in.)
Min. ground clearance :  120 mm (4.72 in.)
Trail :  99 mm (3.89 in.)
Dry weight :  173 kg (381.4 lbs.) – 165 kg (363.76 lbs)**
Fuel tank capacity :  16,5 l (4.36 U.S. gal.)
FRAMEType :  ALS Steel tubular trellis
Rear swing arm :  pivot plates material Aluminum alloy
FRONT SUSPENSIONType :  Marzocchi “UPSIDE DOWN” telescopic
hydraulic fork with rebound-compression damping and spring preload external and separate adjustment
Fork dia. :  43 mm (1.69 in.)
Fork travel :  125 mm (4.92 in.)

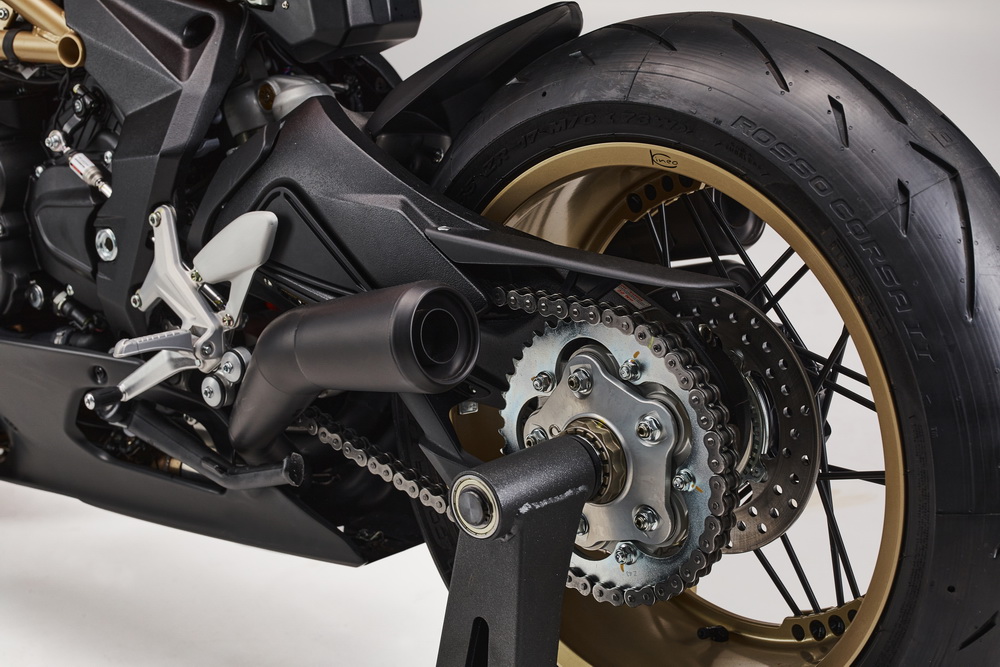

REAR SUSPENSION Type :  Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment Single sided swing arm material Aluminum alloy
Wheel travel :  123 mm (4.84 in.)
Front brake :  Double floating disc with Ø 320 mm(Ø 12.6 in.) diameter, with steel braking disc and flange
Front brake caliper :  Brembo radial-type monobloc,with 4 pistons Ø 34 mm (Ø 1.34 in.)
Rear brake  : Single steel disc with Ø 220 mm (Ø 8.66 in.) dia.
Rear brake caliper :  Brembo with 2 pistons – Ø 34 mm (Ø 1.34 in.)
ABS System :  Bosch 9 Plus with Race Mode and RLM (Rear wheel Lift-up Mitigation)
Front Whee l: Material/size With aluminum alloy spokes 3.50 ” x 17 ”
RearWheel : Material/size With Aluminum alloy spokes 5.50 ” x 17 ”
FrontTyre :  120/70 – ZR 17 M/C (58 W) Pirelli Diablo Rosso Corsa II
RearTyre : 180/55 – ZR 17 M/C (73 W) Pirelli Diablo Rosso Corsa II
FAIRING Material : Thermoplastic
